Topic: Core concepts in compiler design and language theory - understanding how scanners use finite automata to tokenize source code.

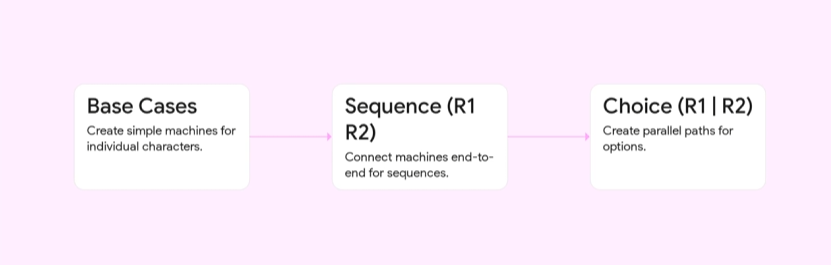

Implementing Regular Expression

Regular expressions are equivalent to finite automata

Scanners

A scanner is a lexer that converts source code into a stream of tokens. It’s just a really good rule follower (regular expression) using patterns to match tokens in the source code.

Finite Automaton

The rules the scanner follow can be converted into a conceptual machine called the finite automaton, its basically a flowchart that reads one character at a time.

NFA

Nonderministic (Multiple possible paths) Finite Automaton. Slower than a DFA

DFA

DFA Deterministic (One possible path) Finite Automaton. Faster than an NFA, but harder to construct.

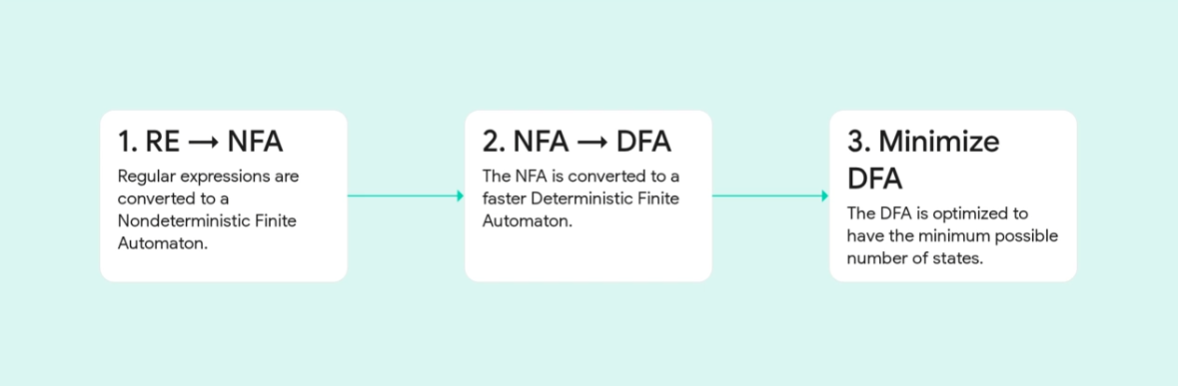

Subset construction

The procedure to convert an NFA to a DFA. This involves creating states in the DFA that represent sets of states in the NFA.
direction LR
Convert $a(abb{)}^{\ast }\cup b$

stateDiagram-v2
   direction LR
  [*] --> A0
  B1

  A0 --> A1: A
  A1 --> B0: ε
  B0 --> B1: C

Practice

$L=w\in 0,1\ast |\text{"w has exactly two 0’s or an even number of 1’s"}$
Hint: Build it as a combination of two simpler regex
Exactly two 0’s
$1^{\ast }(00)1^{\ast }$
Even number of 1’s
$0\ast (10\ast 10\ast )\ast$
Then combine them together using the union operator.
$(1\ast 01\ast 01\ast )|(0\ast (10\ast 10\ast )\ast )$
